Surface Abandonment Proposal
Remote Cut & Cap
Pouce Coupe
100/14-14-076-12W6
Prepared for CANLIN Energy. A field-ready plan for surface abandonment of a remote wellbore — portable ultra-high-pressure cutting unit, staged from Canlin's road-accessible location 1.2 km south-east of the lease.
0
Wellbore
Cut & cap scope
0.0mm
Surface Casing
53.6 kg/m J-55
0.0mm
Production Casing
23.1 kg/m K-55
0
Project Days
Including mob / demob
01 — Project Area
Two-Area Footprint
A road-accessible staging area and a remote wellbore, linked by a short overland route that will be confirmed by Canlin's lease operator.
Staging Area
100/01-14-076-12 W6M
Canlin road-accessible location used for equipment offload, crew marshalling and trailer parking.
Remote Well
100/14-14-076-12 W6M
Approximately 1.2 km north and 0.5 km west of staging. Conductor barrel present at surface.
02 — Well Details
Wellbore & Configuration
Casing programme and surface conditions as provided by Canlin for the remote wellbore.
Surface Casing
244.5 mm x 53.6 kg/m J-55 surface casing to be cut below grade and capped to regulation.
Production Casing
139.7 mm x 23.1 kg/m K-55 production casing, cut concentrically in the same program.
Conductor Barrel
A conductor barrel is present and will be addressed as part of the surface cut sequence.
Site Condition
Photographs supplied are from 2020; the lease will be materially more overgrown today.
03 — Access
Field Access Scenarios
Four possible outcomes from the quad assessment. Each drives a different equipment spread and brushing scope.
Minimal Brushing
A narrow path can be woven into the wellsite with a small clearing immediately adjacent to the wellbore.
Significant Brushing
A path and a well-centre clearing must be cut to allow equipment and crew onto the location.
Portable
Access and wellsite are heavily treed, making a portable cut-and-cap system the practical option.
Brushing Crew
Ground access is feasible but a dedicated brushing crew prepares the route and wellsite beforehand.
Site photographs date from 2020
Vegetation will have advanced significantly. Access method, brushing requirements and schedule are confirmed only after the lease operator assessment is returned.
Lease Operator Assessment
Canlin is dispatching a lease operator by quad to confirm access.
Equipment Selection
The portable equipment spread is confirmed from that assessment.
Pricing Confirmation
Access scope drives brushing costs and final mobilization line items.
04 — Approach
Our Method
How a portable spread compares with a conventional access-first abandonment on a remote, overgrown lease.
Cutting method
Standard
Track-mounted mechanical cutter requiring full lease access
Our approach
Remote portable ultra-high-pressure cutting unit, packable to the wellbore
Site disturbance
Standard
Wide access road and full lease clearing
Our approach
Narrow path with a small clearing at well centre where conditions allow
Remote contingency
Standard
Project deferred until a road can be built
Our approach
Portable spread available if the lease proves impassable
Staging
Standard
New staging pad constructed near the wellbore
Our approach
Existing Canlin road-accessible location at 01-14 used as staging
05 — Rates
Equipment & Rate Schedule
Itemized project estimate showing the supplied units, quantities, rates and extended totals.
Primary Equipment
HP Pumping System
$9,000.00
Day × 3 at $3,000.00
$2,500.00
5 Tonne Excavator
Weekly × 1 at $2,500.00
$2,500.00
Tracked Skid Steer
Weekly × 1 at $2,500.00
$1,750.00
Side by Side
Weekly × 1 at $1,750.00
$1,000.00
40' Trailer
Weekly × 1 at $1,000.00
$2,500.00
Skid - Custom built for portable unit
One time × 1 at $2,500.00
$1,500.00
Tooling
One time × 1 at $1,500.00
Logistics & Mobilization
Support Truck #1
Hourly × 28 at $25.00
$700.00
Support Truck #2
Hourly × 28 at $25.00
$700.00
Support Truck Mobilization
KM × 645 at $1.75
$1,128.75
Support Truck Demobilization
KM × 645 at $1.75
$1,128.75
Subsistence
Day × 6 at $275.00
$1,650.00
Crew Labour
Project Manager
Hourly × 28 at $140.00
$3,920.00
Supervisor 1
Hourly × 28 at $120.00
$3,360.00
Operator 1
Hourly × 28 at $100.00
$2,800.00
Prep
Hourly × 10 at $140.00
$1,400.00
Estimated Project Total
Based on the units and quantities listed above.
$37,537.50
06 — Assumptions
Assumptions & Conditions
The basis of estimate for this proposal, including access, schedule and operating conditions.
Access Method
Final access and brushing scope follow Canlin's lease operator assessment. Pricing is adjusted once the access method is confirmed.
Staging Area
Canlin's road-accessible location at 100/01-14-076-12W6 is used for staging, approximately 1.2 km and 0.5 km offset from the wellbore.
Rates & Surcharges
Rates are quoted without fuel surcharge unless otherwise directed. Standard daylight operating hours apply. There will be no overtime.
Estimate Basis
The project estimate is based on the units, quantities and rates listed in the supplied schedule, including mobilization and demobilization.
Site Condition
Photographs are from 2020. Actual vegetation and ground conditions will differ and may affect schedule and cost.
Regulatory Scope
Work covers surface abandonment — cut and cap — of the identified wellbore only. Downhole abandonment is excluded.
07 — Contacts
Contacts & Next Steps
Leads on both sides of the project, and what has to close before the crew mobilizes.
Innovative Well Abandonment
Contractor
CANLIN Energy
Client — 2701 237 4th Ave SW, Calgary, Alberta

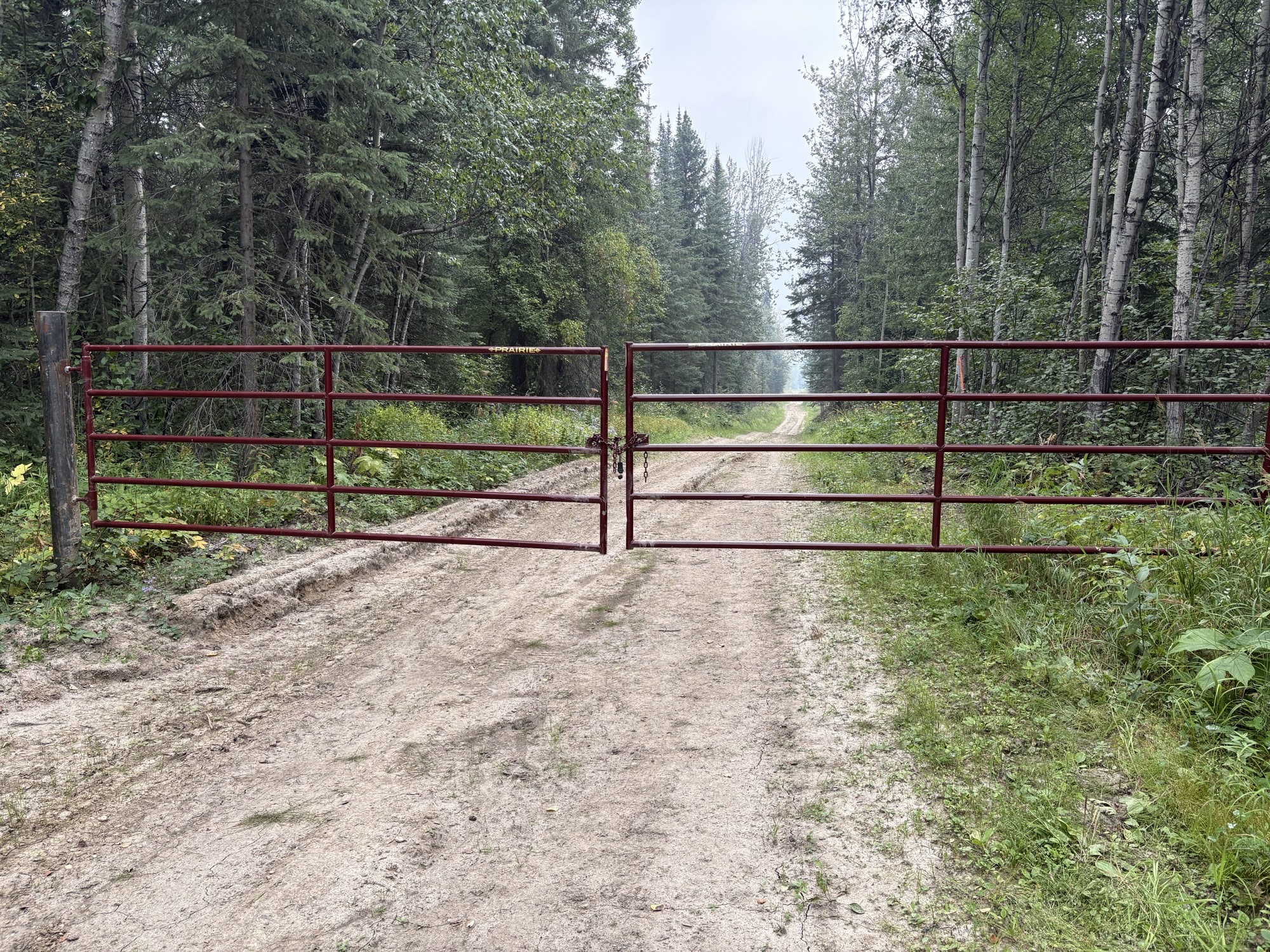

Project Photos
